New 1100cc 4X4 EEC EPA 4-seater buggy

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
1100CC
Certificate:
EPA
Fuel:
Gas / Diesel
Transmission Type:
Manual
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Gsmoon
Model Number:
XYJK1100
Wheelbase:
2860mm
Front Track:
1310mm
Rear Track:
1370mm
Ground Clearance:
260mm
Engine Type:
L3,12valves,DOHC
Engine capacity:
1100cc
MaX out put power:
50kw/6000rpm
MaXimum load:
Four seats/400Kg
Fuel tank:
23L
Final Drive:
Shaft Drive
Supply Ability
Supply Ability:
400 Unit/Units per Month
Packaging & Delivery
Packaging Details
crate
Port
Shanghai
Lead Time :
25days from order

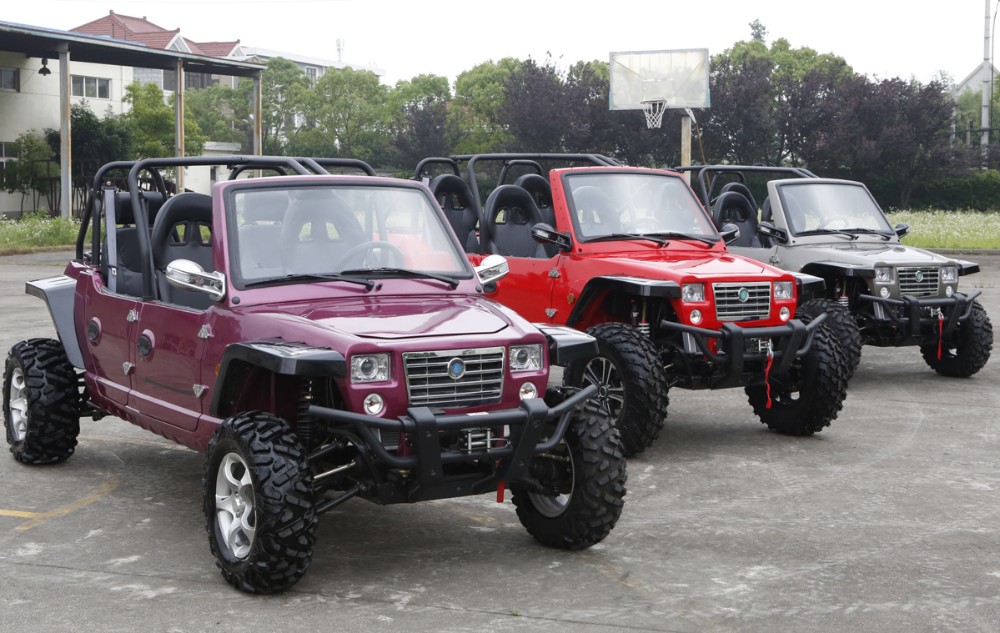

EPA1100CC 4X4 UTV FOUR SEATER VERSION



This UTV utilizes

an automotive engine (1100CC Chery Brand, EFI Engine) and drive train

Independent front/rear differential locks

Steel body, Steel door, steel roll bars, steel bumpers

Electric control 4x4 system

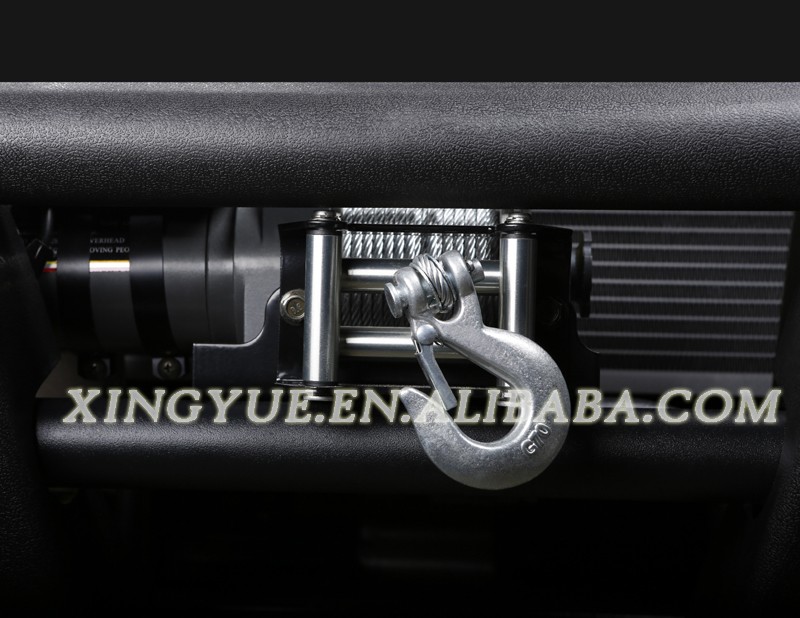

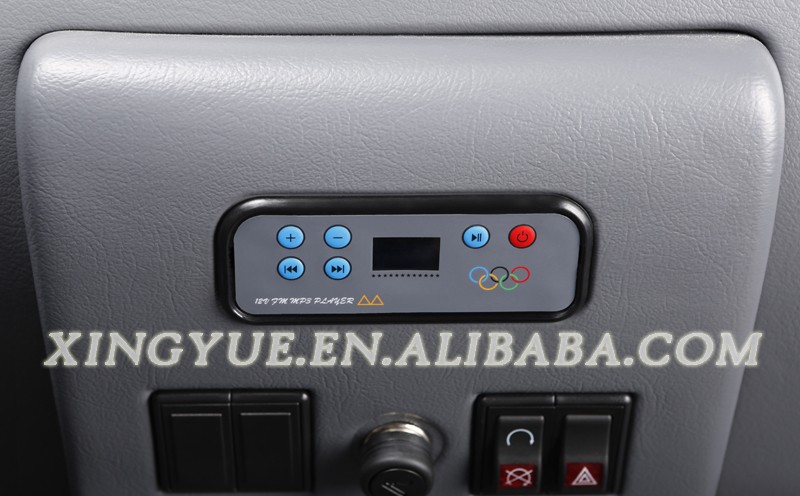

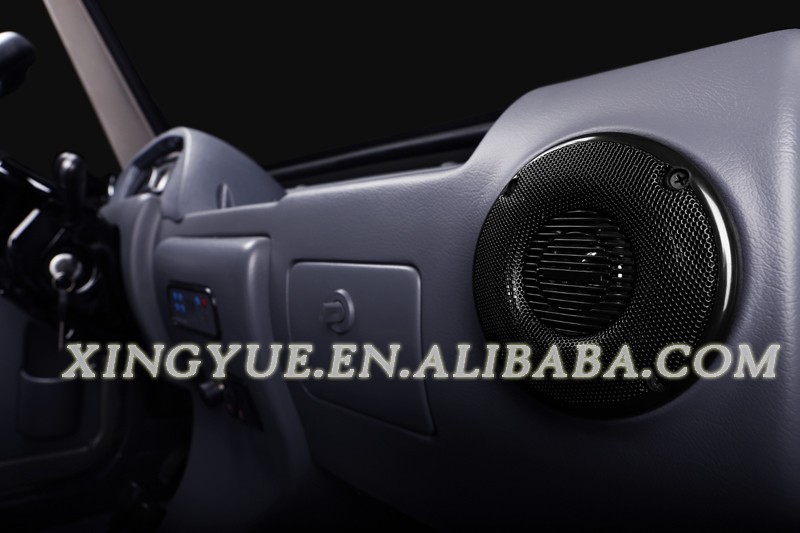

Options:Winch, Spare wheel with support, Cab enclosure, Memory stick stereo system with bass sub and dash speaker, Stainless Steel muffler, Electric heater, towing hitch,etc

 _S7A8802_S7A8811_S7A8837_S7A8851_S7A8806_S7A8819_S7A8862_S7A8391

Production size (mm)3750mm X1650mm X1570 mmWheelbase2860mm
Front Track1310mmRear Track1370mm
Ground Clearance260mmTypeL3,12valves,DOHC
Engine capacity1100ccBore Stroke70mmX66.5mm
Corrected compression ratio9.5:1MaX out put power50kw/6000rpm
MaX Torque90Nm/3500-4000N.m/r/minStartingElectric,<10s
IgnitionECULubricationSAE 10W/30 SF API
Transmission5-MT With reverseMaXimum loadFour seats/400Kg
Fuel tank23LClimbing20 -25
Top speed80KM/h (or limited as customers require)Front, Rear brakeHydraulic disc, right foot control
Front/rear tireAT27X8-14/ AT27X11-14Front/rear SuspensionIndependent Dual A-Arm
Final DriveShaft DriveCarton dimensions3530mmX 2115mmX 895mm
N.W.840kgG.W.1050kg
Qty/40HQ8Qty/40GP6
Qty/20GP2
