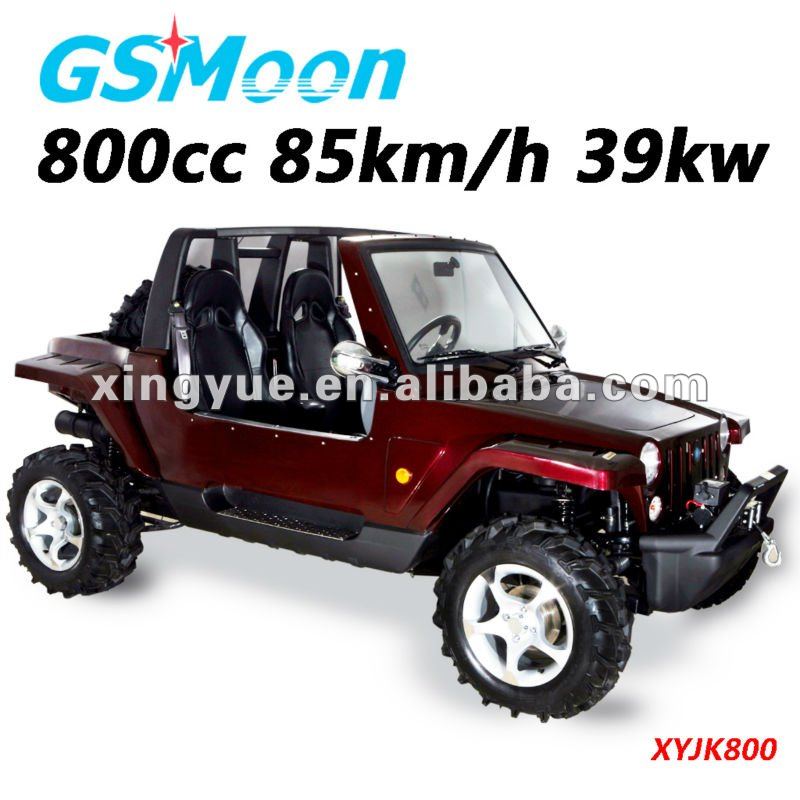

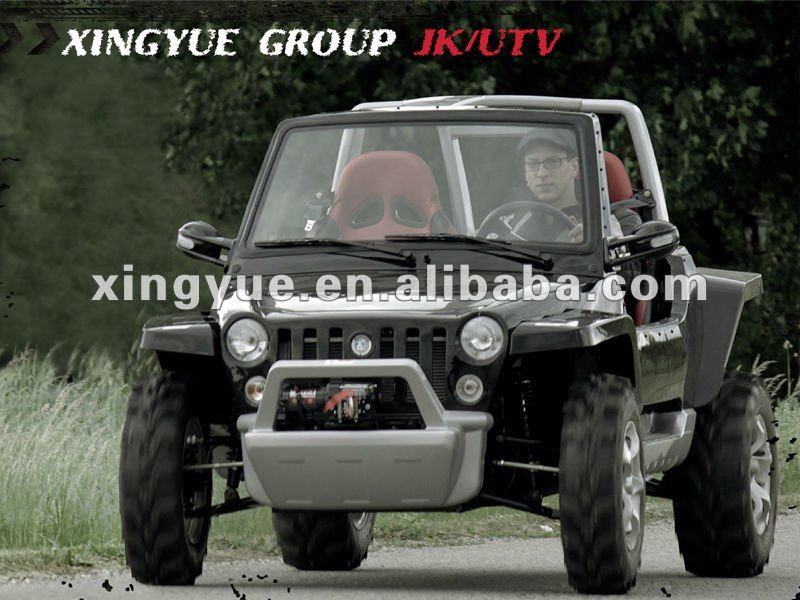

epa eec 4x4 utv 800 with Chery Brand EFI Engine

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Transmission Type:
Manual
Transmission System:
Shaft Drive
Certification:
ECE
Brand Name:
GSMOON
Place of Origin:
Shanghai, China (Mainland)
Model Number:
XYJK800
Wheelbase::
2215mm
Front Track::
1330mm
Rear Track ::
1365mm
Ground Clearance ::
250mm
Type ::
L3,12valves,DOHC
Ignition::
ECU
MaX out put power ::
39kw/6000rpm
MaX Torque ::
70Nm/3500-4000N.m/r/min
Final Drive ::
Shaft Drive
MaXimum load ::
Double seats/50Kg
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
crate and carton
Qty/40= HQ: 11 Qty/40= GP:8 Qty/20= GP:4
Port
Shanghai or Ningbo

epa eec 4x4 utv 800cc

an automotive engine (812CC Chery Brand, EFI Engine) and drive train

Independent front/rear differential locks

Steel body

Electric control 4x4 system

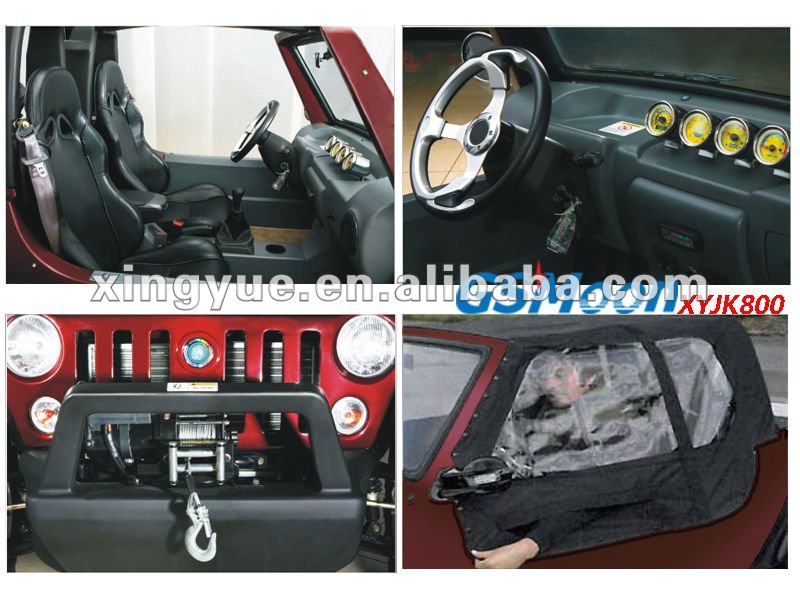

Options: Winch, Spare wheel with support, Cab enclosure, Memory stick stereo system with bass sub and dash speaker, Stainless Steel muff

XYJK800 3603 XYJK800 JBXYJK800 FJ



Production size (mm)3130mm X1640mm X1550 mmWheelbase2215mm
Front Track1330mmRear Track1365mm
Ground Clearance250mmTypeL3,12valves,DOHC
Engine capacity800ccBore Stroke72mmX66.5mm
Corrected compression ratio9.5MaX out put power39kw/6000rpm
MaX Torque70Nm/3500-4000N.m/r/minStartingElectric,<10s
IgnitionECULubricationSAE 10W/30 SF API
Transmission5-MT With reverseMaXimum loadDouble seats/50Kg
Fuel tank23LClimbing20 -25
Top speed80KM/h (or limited as customers require)Front, Rear brakeHydraulic disc, right foot control
Front/rear tireAT27X8-14/ AT27X11-14Front/rear SuspensionIndependent Dual A-Arm
Final DriveShaft DriveCarton dimensions2950mmX 2115mmX 895mm
N.W.655kgG.W.745kg
Qty/40HQ11Qty/30GP8
Qty/20GP4
